- high power dc brushless motor
Motor Type: DC Motor
Power Supply: DC
Model Number: ZM-7206
Support Motor: Brushless dc motor less of 1200w
Type: bldc motor driver
Function:: support built-in and external potentiometer
The rated output current: 4.9A, Max 9.9A
Protection: Under/Over-voltage,over-current, Stall, Hall Wrong, over-heating
Input Voltage: AC180/250VDC
Operating temperature: 0 ~ +45 degrees Celsius
Storage temperature: -20 ~ +85 degrees Celsius
Construction: wall box type

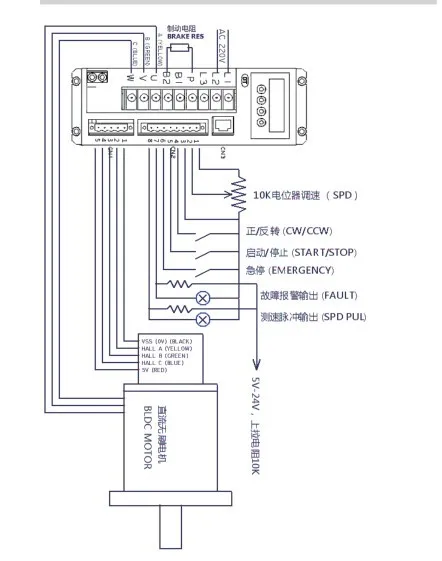

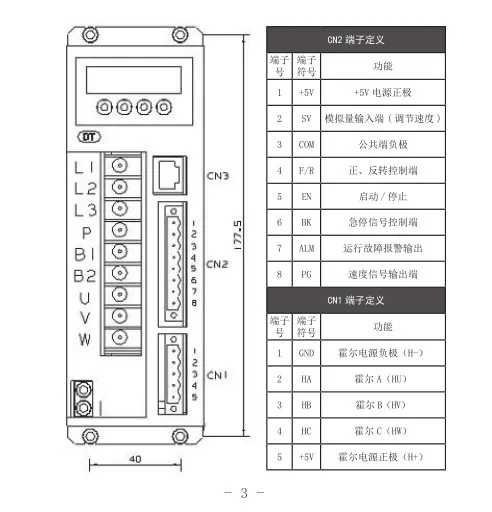

High power brushless DC controller ZM-7206 panel display speed drive 1.2KW brushless motor
High voltage brushless DC motor controller! Panel display speed; maximum drive 1.2KW brushless motor
For more information please contact us.
· 5.1 parameter group P0
For common users, only one parameter is useful in P0 parameter group. When P0.6 is set to 1, the P1 parameter group will be unlocked. In general, the P1 parameter group is locked and invisible to prevent accidental modification.
· 5.2 parameter P1
These parameters are used to set up some special customizing functions, usually used to adjust the process parameters by the users themselves. This part of parameters has nothing to do with the driver’s basic performance. They belong to the functional parameters of the application level, which are often adjusted according to user’s specific operation requirements.
0 shows motor’s current speed
1 shows DC bus voltage
2 shows input value of external analogue
3 shows motor current
4 shows internal planning speed
5 Shows U phase current
o P1.1 Internal running speed
When choose the internal speed, the motor’s speed will depends on this parameter Ref. to P1.2
o P1.2 Select speed signal source
0. Internal command speed (tP1<0> is internal speed, the button MUP, MDOWN keys during motor motion will increase or decrease the speed)
1: external port analogue input, using CN2’S pin 2 - SV signal as motor speed.
2: communication command control (not available for the time being)
o P1.3 Rotation direction setting
0: Forward 1: reverse
o P1.4 Select starting and stop signal source
0: manual control key (ENT key start/stop, the SET key flips rotational direction of the motor, + / - key means to increase or reduce the speed)
1: external port control, using CN2’s pin 5 signal to start and stop the motor.
2: communication command control
o P1.5 Motor’s pole logarithm
If the pole number of the motor is not set correctly, the speed displayed on the panel and the actual speed will not match.
Note: Motor Series = motor polar logarithm x2
o P1.6 Drive address
The drive’s address when using communication to control the motor.
o P1.7 Speed scale factor
Scale factor KP is used in PID speed control.
o P1.8 Speed integration factor
Integrated factor KI for PID speed control.
o P1.9 Motor acceleration
Change the parameter proportional to the acceleration, the unit is rpm./second, 1000 means to accelerate 1000 rev/min. However the actual acceleration of the motor will be related to the load, and the motor.
o P1.10/11 Motor’s rated speed setting
Unit rpm/min, the corresponding motor speed when the analogue input is at maximum value.
o P1.12 Analogue input dead-band voltage
Unit millivolt, this parameter is used to set the corresponding input voltage when the motor is at zero speed.
o P1.13 Manual speed adjustment equivalent
in the internal speed mode use the button to change the speed equivalent
(Press buttons to increase or decrease speed)
o P1.14 System retention parameters
Users can not set this parameter; otherwise the driver will enter the abnormal operation mode, resulting in the failure of the external drive and possibly cause an accident.
o P1.20 Filter coefficient
Display the speed filter coefficient, increasing this parameter can increase the stability of the speed display, but the following time will increase with the actual speed.
· 5.3 parameter group P2
This parameter is the bottom parameter of the motor. It is only open to the developer. The user is not allowed to make adjust or it will possibly damage the driver and motor.
